How plc’s analog inputs and outputs works ?

Hello everyone !

Here is my new document about analog input and output application with Omron CP1H-XA40DT-D.

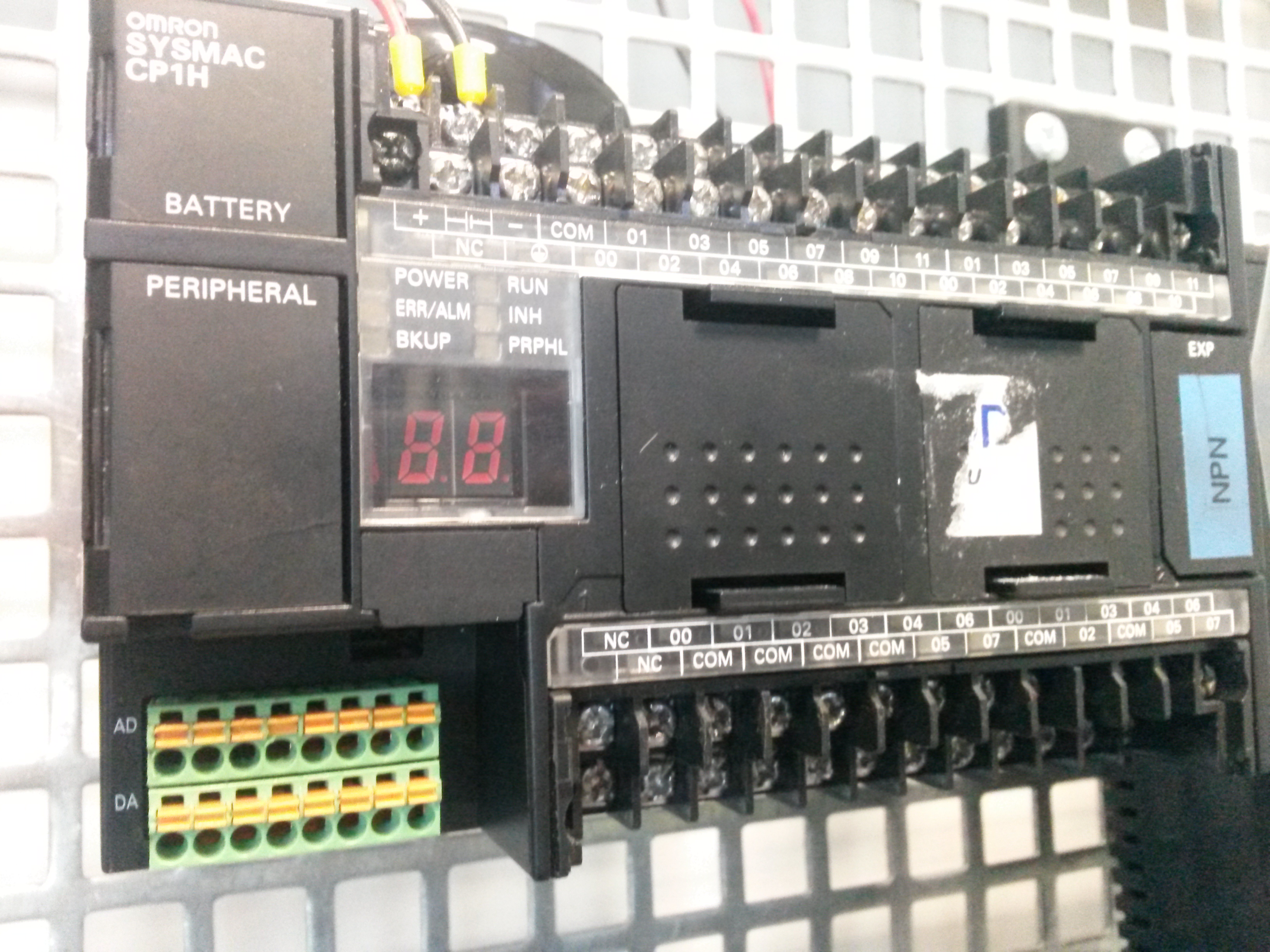

Cp1h General Viiew
CP1H-XA40DT-D PLC Analog Input and Output Application





First of all , there are some settings which had should be arranged before doing application.

Switch Settings
CP1H-XA40DT-D PLC AnalogSwitch settings.

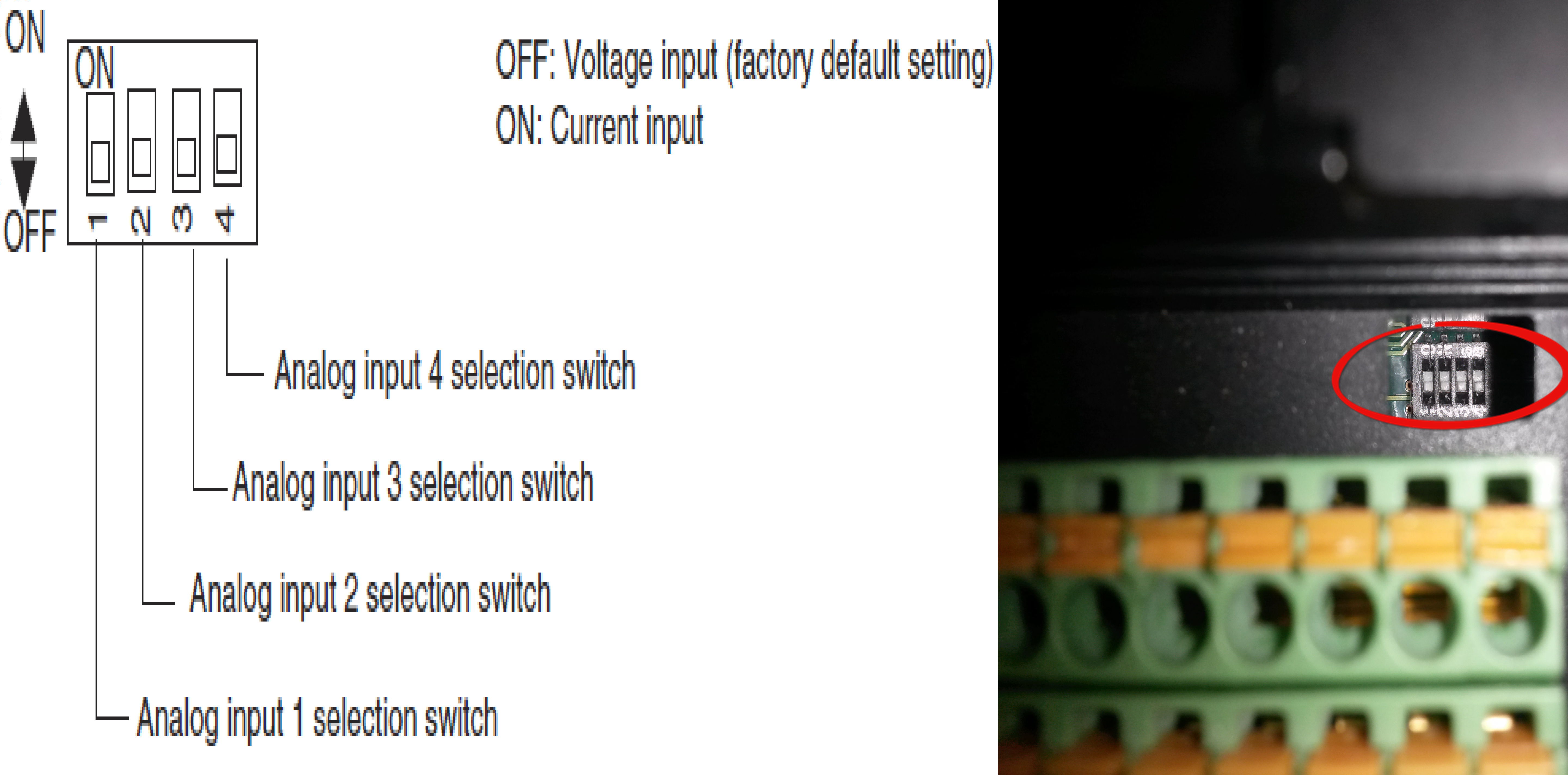

As you can see above each analog inputs can be set  as a voltage input or current input.

In order to choose type of input , switch settings must be arrange according to Picture that i shared above.

Today , we are going read voltage with analog input  thus , switches stay off  in our application.



PLC SETUP

PLC SETUP
CP1H-XA40DT-D PLC Analog SETUP

Each input’s input range is set independently in the PLC Setup.

The voltage input range can be set to 0 to 5 V, 1 to 5 V, 0 to 10 V, or −10 to 10 V.

The current input range can be set to 0 to 20 mA or 4 to 20 mA.

In our application we have arranged 0-10V because of our potentiometer range.



Now we are going to make wire connections between potentiometer and analog inputs.



Here is the explanation of analog input terminals.

CP1H-XA40DT-D Analog Terminal
CP1H-XA40DT-D PLC Analog Terminal



Then let’s wired them !

First make connection with potentiometer and take these cable to the plc.

Potentiometer plc terminal PHONE
CP1H-XA40DT-D PLC Analog Input Application





Input/Output conversion data is stored in CIO(Common Input Output) words between CIO 200 and CIO 211.

IO Allocation
CP1H-XA40DT-D PLC Analog Application



The analog voltage inputs are converted to digital values and output to CIO

words CIO 200 to CIO 203.

We wired potentiometer to analog input 5 and 6 pins which means analog value can be read from CIO 202 word.

CIO 202 can be read from Cx-Programmer when its online with  CP1H PLC.

Do not forget the cycle the power to the PLC after the change settings !!! If you forget it there might be appear some occasional mistakes.

CI0 202 Value is 6000 in terms of decimal , because potentiomer’s output is adjusted to 5 Volt.

5to5
CP1H-XA40DT-D PLC Analog İnput



CI0 202 Value is 12000 in terms of decimal , because potentiomer’s output is adjusted to 10 Volt.

10to10
CP1H-XA40DT-D PLC Analog Input



Analog output can be give with Cph1’s DA terminals.

We are going to measure output voltage from 9th and 11th terminals

Analog Output Terminal
CP1H-XA40DT-D PLC Analog Output Terminal



In order to give an output from 9th and 11th terminals , CIO 210 word must be assigned with a value with MOV command.

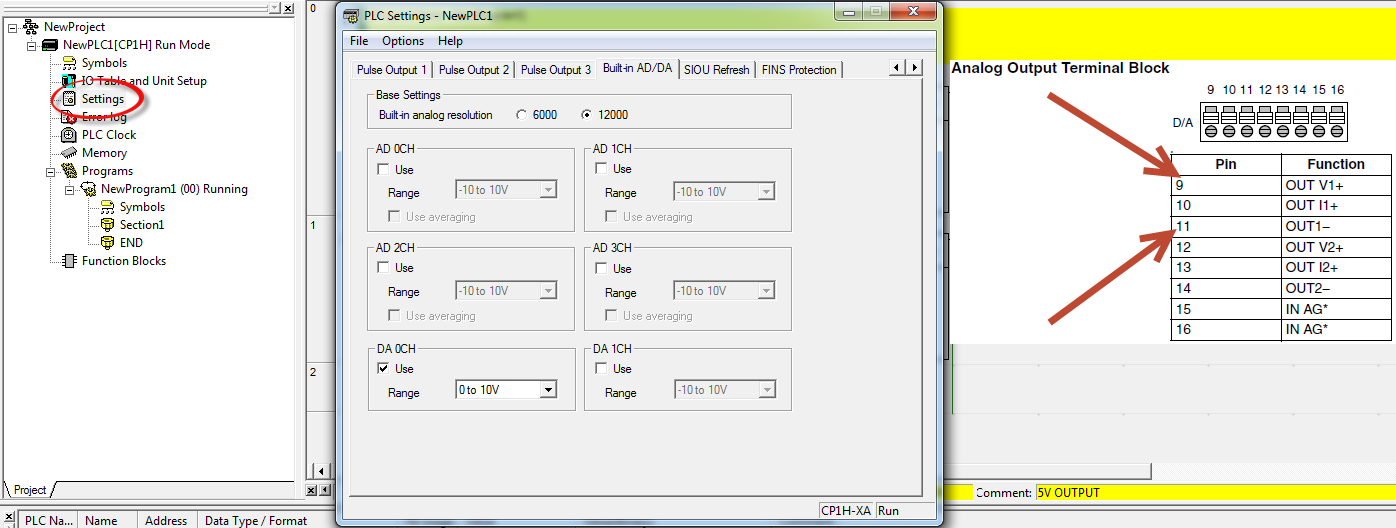

Firstly , built in AD/DA settings must be arranged.

8 Analog settings
CP1H-XA40DT-D PLC Analog Output Application





You must ! cycle the power to the PLC after arrange setting above. If you forgot this , probably you’ll try to understand “why this plc is not giving output !” terms and started examine everyting  🙂

That is why please do not forget cycle the power !

After cycled operation is finished , when as soon as w10.00 contact is settled 1 , PLC’s 9th and 11th pins gives 5 Volt Output.

5 Volt Completed
CP1H-XA40DT-D PLC Analog Output Application

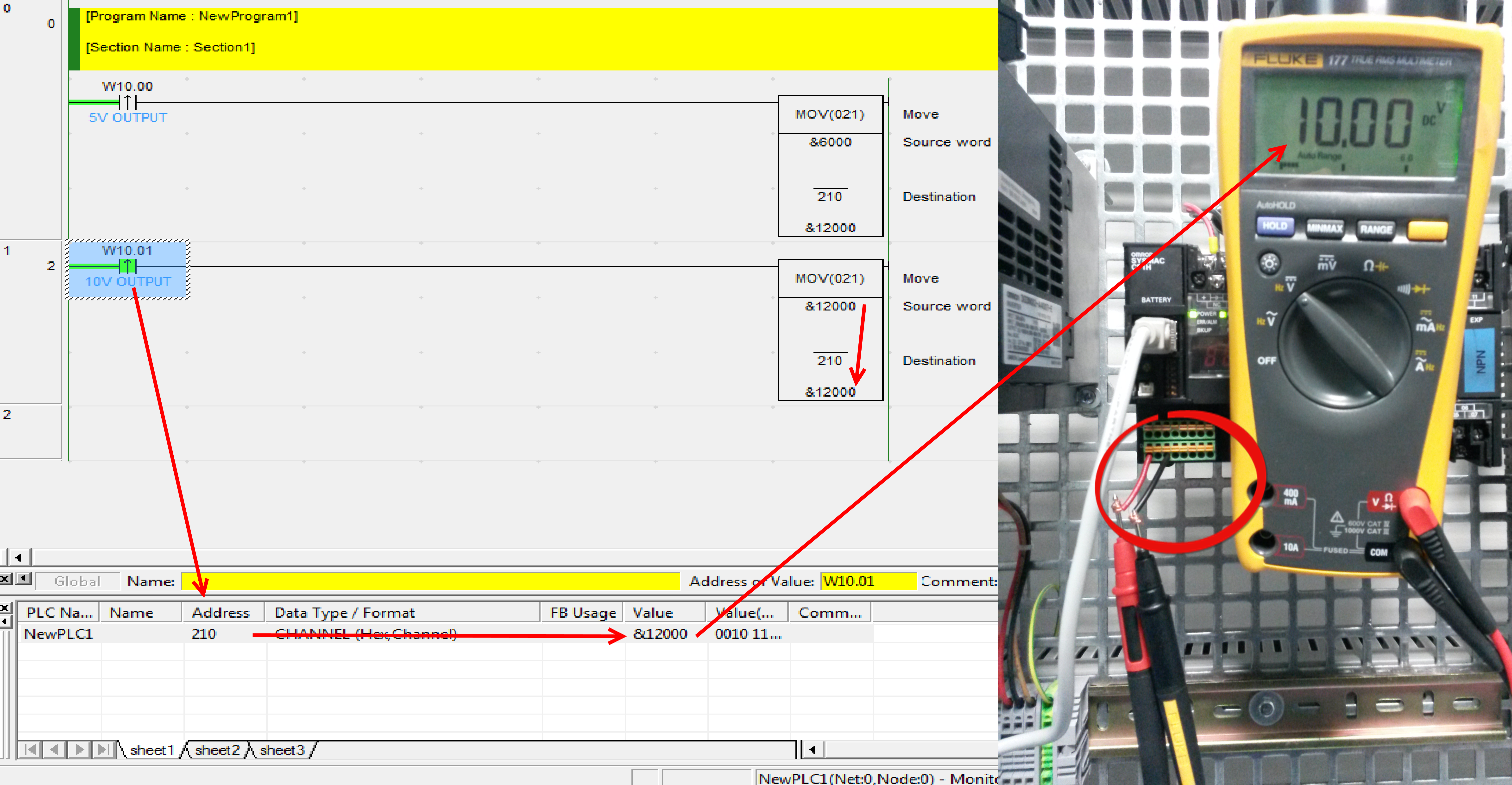

And as soon as w10.01 contact is settled 1 , PLC’s 9th and 11th pins give 10 Volt Output.

CP1H-XA40DT-D PLC Analog Output Application



I wish you can understand how analog input and output works in CP1H-XA40DT-D plc. You might be have questions about that topic or another topic related with industrial automation components.

            You can freely ask your questions from erhanesk.technic@gmail.com to me.

            Next document that I planned to make related Mx2 speed settings with analog reference and multi-speed terminals.

See you in other useful documents !
