External speed reference with potentiometer to inverter.

Hi all !

Today we are going to give external speed reference with potentiometer to MX2 Frequency Inverter.

Although that document contain application on MX2 inverter , these all information valid for  JX , RX and LX inverters too.

There is only difference RX and LX , have -10V , +10V second terminal O2 which allows us to  read additionally analog voltage input.



Let’s move on to application.

First of all , parameters should be arranged.

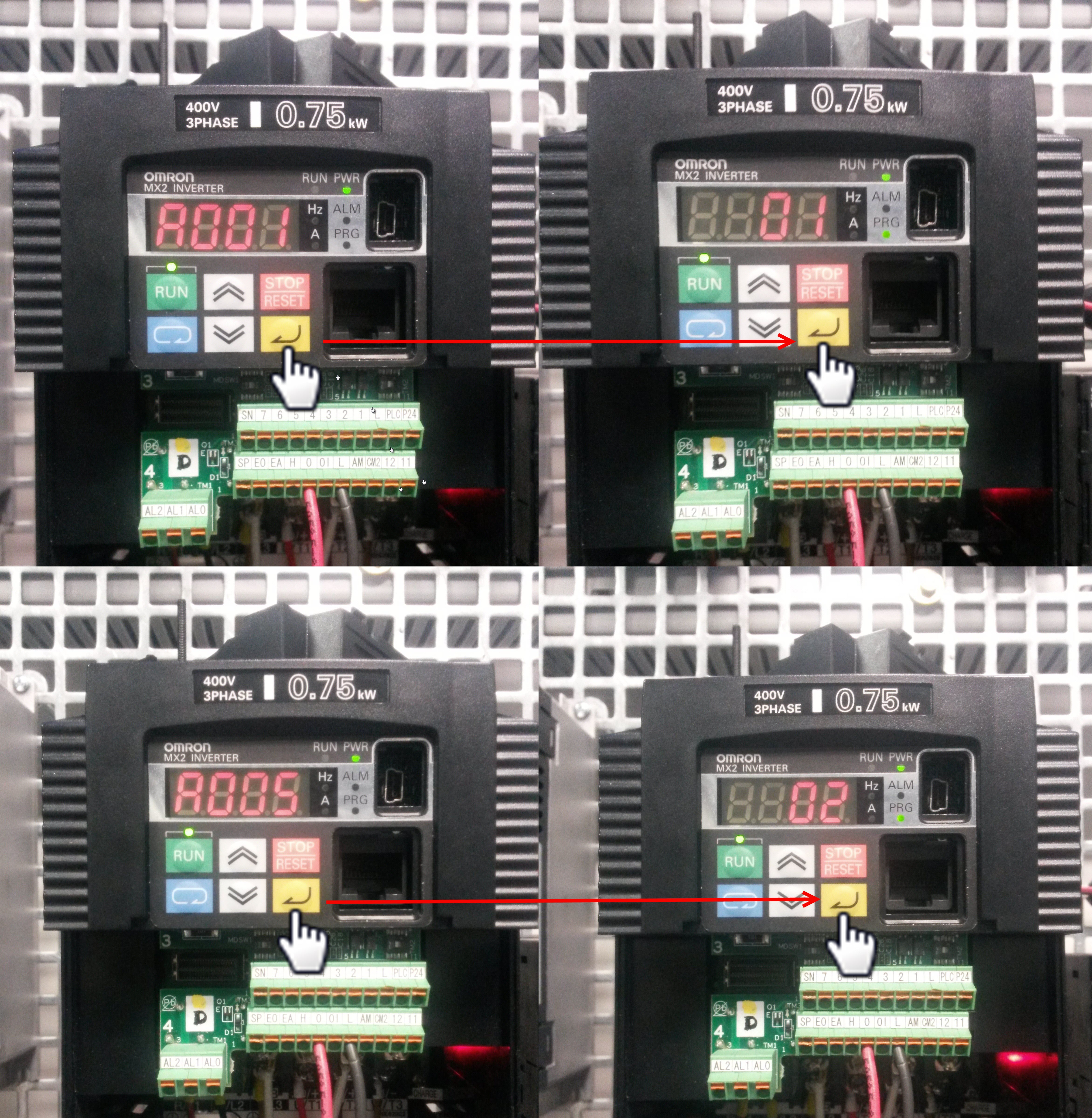

In order to get frequency source from O or OI terminals , A001 parameter should be set as 01.

A005 should be equal 02 in order to get frequency source from O terminal.

A001 and A005
Analog Speed Referance with Omron MX2 Inverter





A011 and A012 parameters which are showed with red arrow , represent start and end frequency respectively in terms of HZ unit.

A013 and A014 parameters which showed with green arrow , represent start and end active portion of the input voltage range .



Grafik
Analog Speed Referance with Omron MX2 Inverter

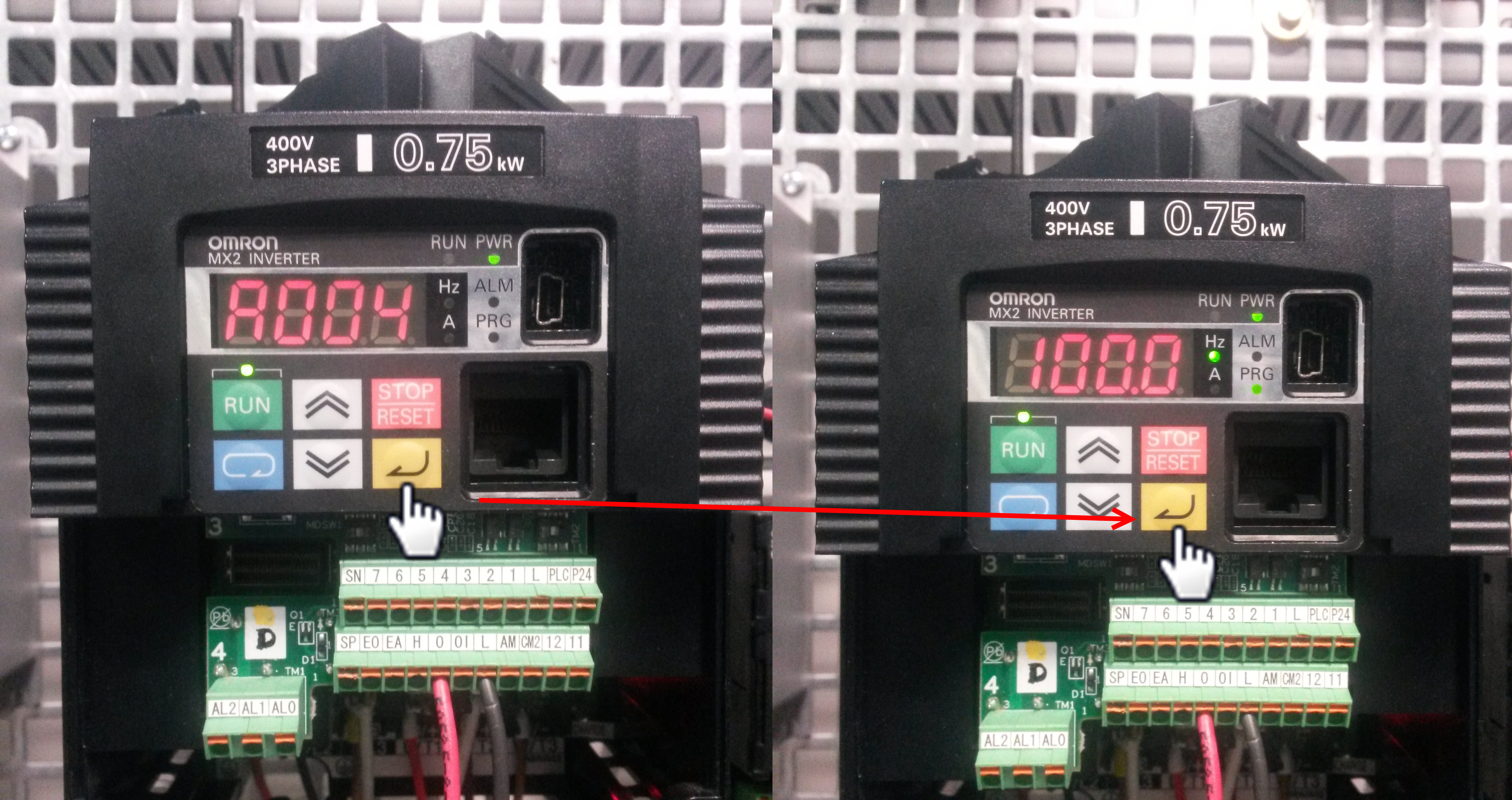

A004 determine the maximum output frequency limit in inverter. In order to monitor 0-10V analog input clearly , lets set this parameter 100 in terms of Hz unit.

A004 100
Analog Speed Referance with Omron MX2 Inverter



A011 = 0 ; // Start Frequency   , A012 = 100 ;        // End Frequency

A013 = 0 ; // Start Ratio ,        A014 = 100 ;        // End Ratio



a013 ,a014 , a011 , a012
Analog Speed Referance with Omron MX2 Inverter

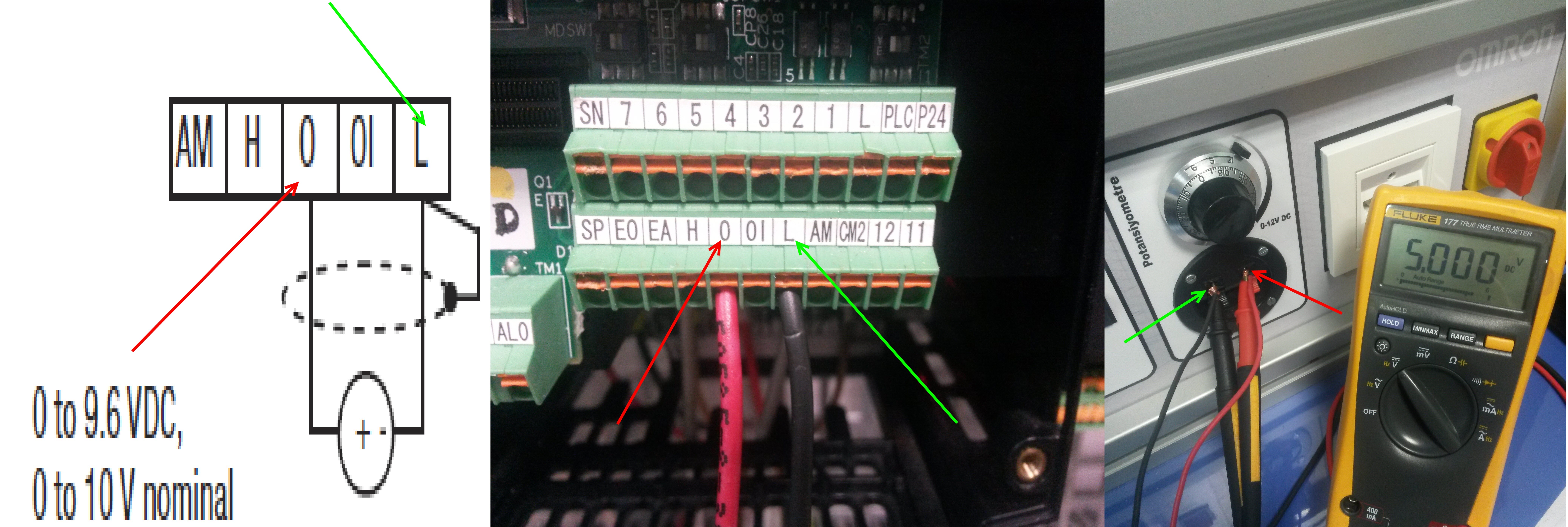

Wiring of the terminal to potentiometer can be seen from wiring picture.

Wiring Completed
Analog Speed Referance with Omron MX2 Inverter



In order to monitor potentiometer’s output instantly , a multi-meter has connected with potentiometer’s output.



Our system is ready now ! Lets RUN !

As soon as press RUN button on the inverter , inverter give output according to analog reference which coming from potentiometer’s output to inverter’s O and L terminal.



For instance ;

If potentiometer’s output reach the 7.2 Volt , inverter’s output reach 72.0 Hz.

72 Hz
Analog Speed Referance with Omron MX2 Inverter

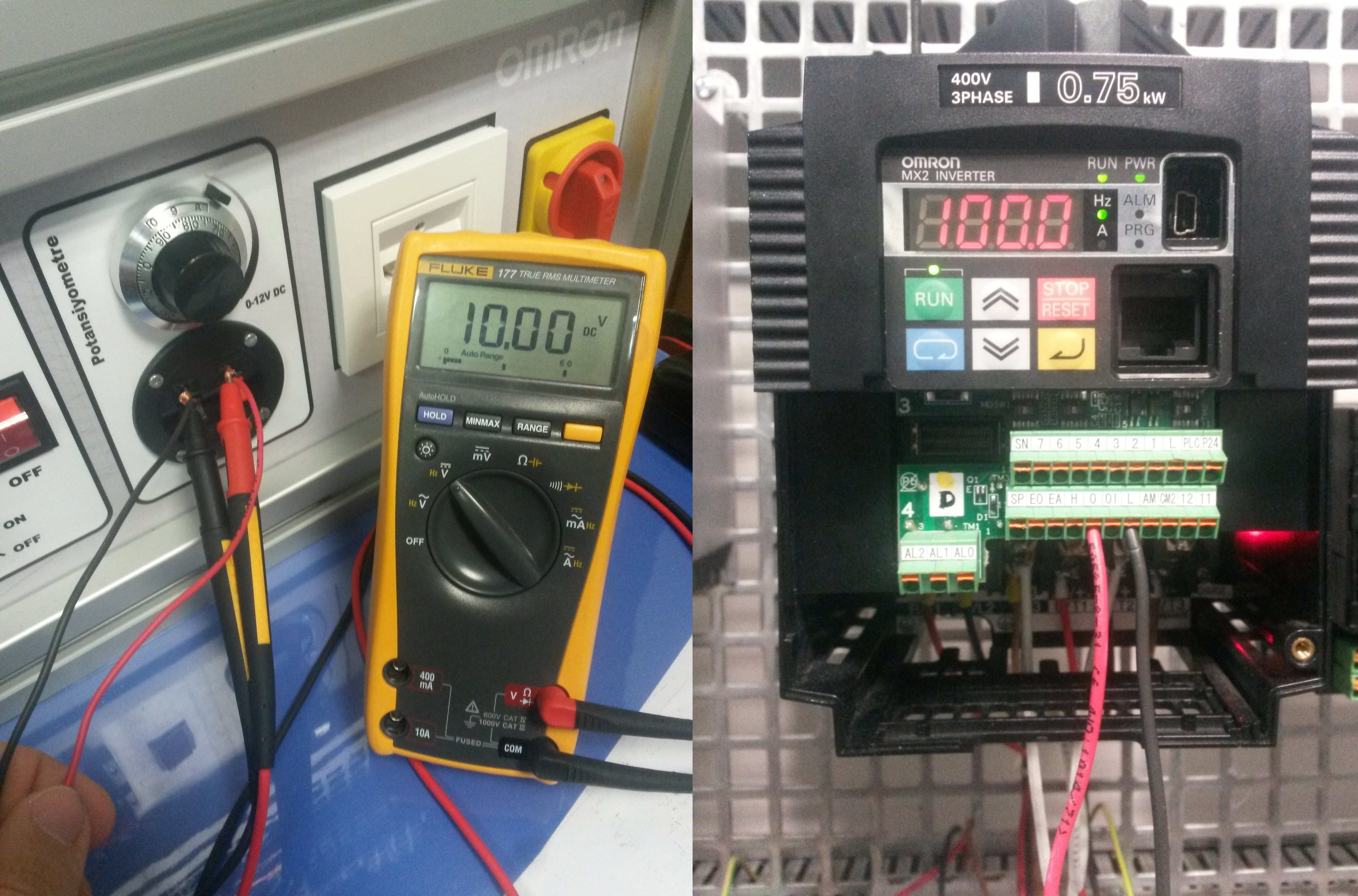

If potentiometer’s output reach the 10.0 Volt , inverter’s output reach 100.0 Hz.



100HZ
Analog Speed Referance with Omron MX2 Inverter



This post determine change the output of inverter with external analog voltage input with potenitometer. Same application can be done with  analog current too.



If you try to analog current , i advise you to evaluate MX2’s User Manual.



You can ask your question freely from erhanesk.technic@gmail.com to me 🙂
